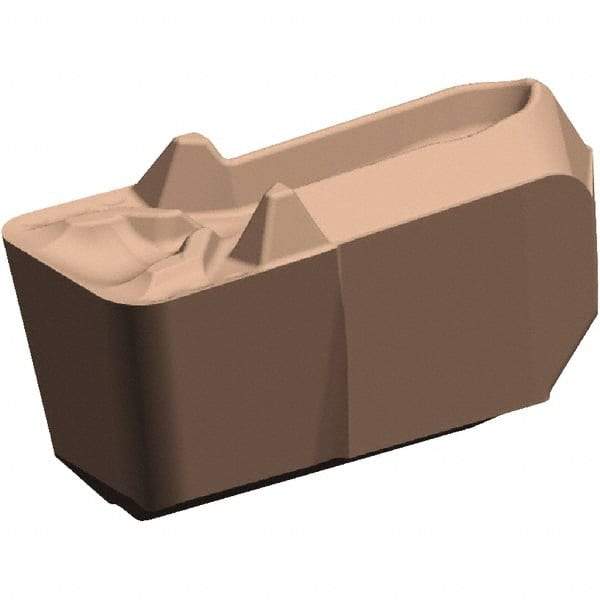

Kennametal - 10EG-P GUP Grade KCU25, 9.53mm Cutting Width Carbide Grooving/Cut-Off Insert - 5.2mm Max Depth of Cut, Neutral, 1.2mm Corner Radius, AlTiN Finish
Item #: 54463674
Brand: Kennametal
Model #: 5988812
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG-P |
| Insert Size | 10 |
| Material | Carbide |
| Cutting Width (mm) | 9.53 |
| Cutting Width (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (mm) | 5.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.2060 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.40 |
| Cutting Height (Decimal Inch) | 0.3290 |
| Insert Seat Size | 10 |
| Chipbreaker | GUP |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Minimum Corner Radius (Decimal Inch) | 1.2000 |
| Maximum Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Overall Length (mm) | 20.70 |
| Overall Length (Decimal Inch) | 0.8150 |
| Series | Beyond Evolution |
| Rake Angle | 26 |
| Rake | Positive |
| Overall Width (mm) | 9.53 |
| Overall Width (Decimal Inch) | 0.3750 |
| Insert Thickness (Decimal Inch) | 0.3290 |
