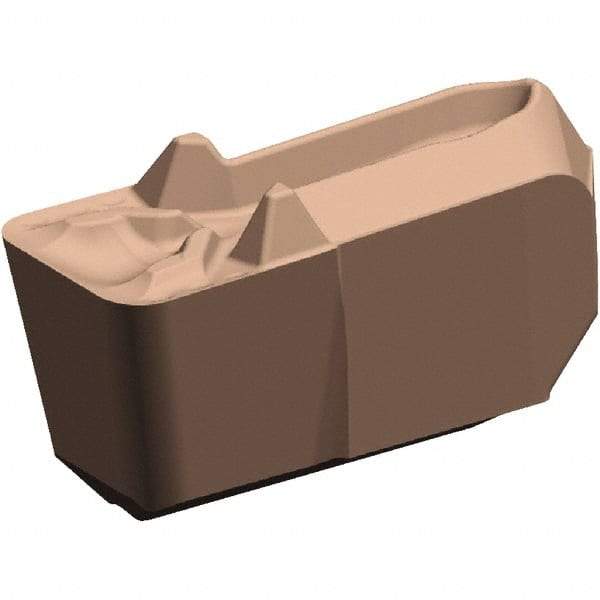

Kennametal - 5EG-U GUP Grade KCU25, 5.13mm Cutting Width Carbide Grooving/Cut-Off Insert - 3.2mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, AlTiN Finish
Item #: 54463138
Brand: Kennametal
Model #: 5533214
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG-U |
| Insert Size | 5 |
| Material | Carbide |
| Cutting Width (mm) | 5.13 |
| Cutting Width (Decimal Inch) | 0.2020 |
| Maximum Depth of Cut (mm) | 3.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.1260 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.86 |
| Cutting Height (Decimal Inch) | 0.1920 |
| Insert Seat Size | 5 |
| Chipbreaker | GUP |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Minimum Corner Radius (Decimal Inch) | 0.8000 |
| Maximum Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | PVD |
| Overall Length (mm) | 12.25 |
| Overall Length (Decimal Inch) | 0.4820 |
| Series | Beyond Evolution |
| Rake Angle | 30 |
| Rake | Positive |
| Overall Width (mm) | 5.13 |
| Overall Width (Decimal Inch) | 0.2020 |
| Insert Thickness (Decimal Inch) | 0.1920 |
