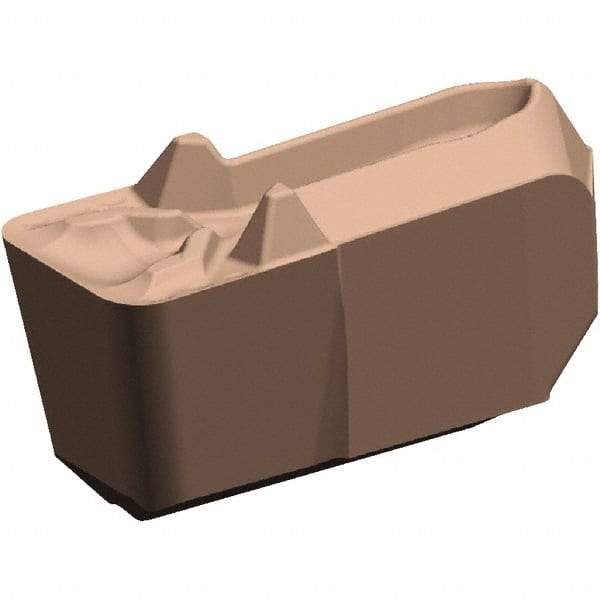

Kennametal - 4EG-P GUP Grade KCU10, 4.76mm Cutting Width Carbide Grooving/Cut-Off Insert - 2.7mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, AlTiN Finish
Item #: 54446059
Brand: Kennametal
Model #: 6012714
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG-P |
| Insert Size | 4 |
| Material | Carbide |
| Cutting Width (mm) | 4.76 |
| Cutting Width (Decimal Inch) | 0.1875 |
| Maximum Depth of Cut (mm) | 2.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.1060 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.42 |
| Cutting Height (Decimal Inch) | 0.1730 |
| Lead Angle | 3 |
| Insert Seat Size | 4 |
| Chipbreaker | GUP |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Minimum Corner Radius (Decimal Inch) | 0.0156 |
| Maximum Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Coating Process | PVD |
| Overall Length (mm) | 10.10 |
| Overall Length (Decimal Inch) | 0.3990 |
| Series | Beyond Evolution |
| Rake Angle | 27 |
| Rake | Positive |
| Overall Width (mm) | 4.76 |
| Overall Width (Decimal Inch) | 0.1875 |
| Insert Thickness (Decimal Inch) | 0.1730 |
