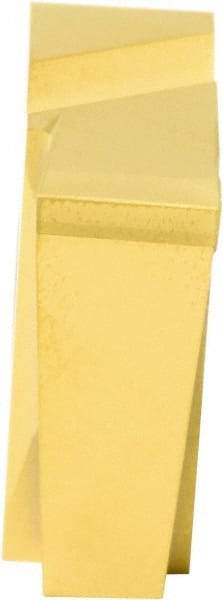

Sumitomo - 1504250CGA Grade BNC30G, 2.5mm Cutting Width PCBN Grooving Insert - 4mm Max Depth of Cut, Right Hand, 0.2007mm Corner Radius
Item #: 53973749
Brand: Sumitomo
Model #: 54JA579
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CGA |
| Insert Size | 1504250 |
| Material | PCBN |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | BNC30G |
| Insert Hand | Right Hand |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.2007 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Series | GWB |
| Overall Width (mm) | 4.76 |
| Overall Width (Decimal Inch) | 0.1875 |
