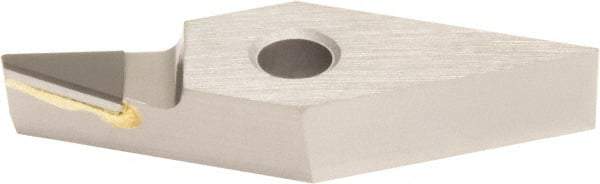

Sumitomo - NF-VNMX330.5 Grade DA1000 Polycrystalline Diamond (PCD) Turning Insert - 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0.0078" Corner Radius
Item #: 53956967
Brand: Sumitomo
Model #: 16HQCCS
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | NF-VNMX |
| Insert Size | 330.5 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Manufacturer's Grade | DA1000 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Positive |
| Rake Angle | 10 |
| Relief Angle | 0 |
| Included Angle | 35 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
