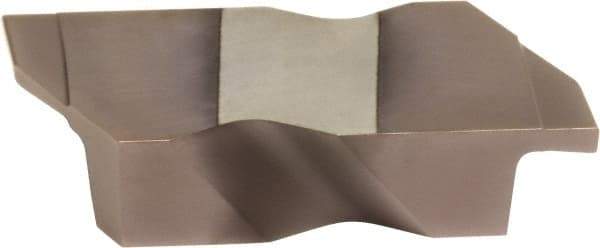

Sumitomo - 2041SG Grade EH520V, 0.041" Cutting Width Carbide Grooving Insert - 0.05" Max Depth of Cut, Neutral, 0.002 to 0.005" Corner Radius, TiAlN Finish
Item #: 53948717
Brand: Sumitomo
Model #: U102049
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SG |
| Insert Size | 2041 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0410 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Manufacturer's Grade | EH520V |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.2190 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (Decimal Inch) | 0.002-0.005 |
| Series | SumiNotch |
| Overall Width (Decimal Inch) | 0.1500 |
