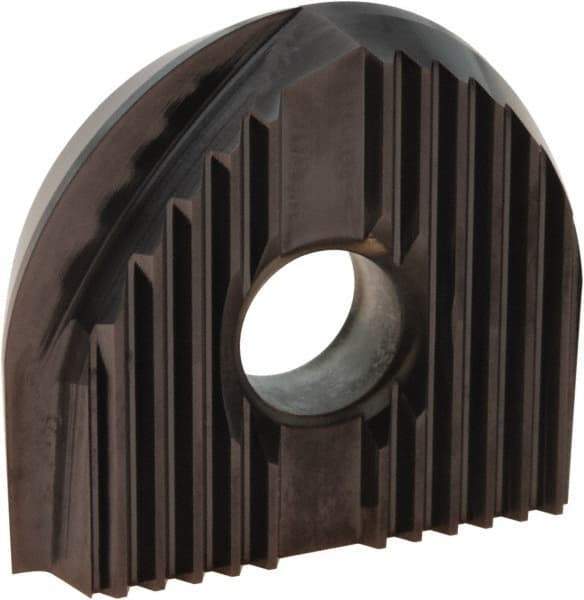

Tool-Flo - TBNR875 ZS Grade ZS26D Carbide Milling Insert - AlTiN Finish, 0.236" Thick, 1" Inscribed Circle
Item #: 53798435
Brand: Tool-Flo
Model #: TBNR875NZS26D
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TBNR |
| Insert Size | 875 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | ZS26D |
| Coating | AlTiN |
| Width (Decimal Inch) | 0.8750 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Decimal Inch) | 0.2360 |
| Hole Diameter (Decimal Inch) | 0.2700 |
| Convex Radius (Decimal Inch) | 0.8750 |
| Relief Angle | 1.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | PVD |
| Shape | Ball Nose |
| Insert Hand | Neutral |
| Chipbreaker | ZS |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | TBNR-875-N |
