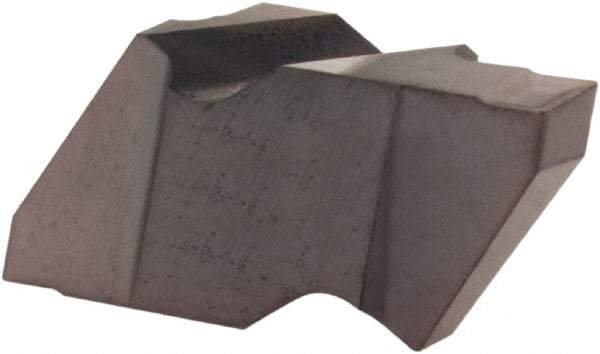

Kennametal - 4094NRD Grade KCU10, 4.78mm Cutting Width Carbide Grooving Insert - 1/2" Max Depth of Cut, Right Hand, 0.0941" Corner Radius, AlTiN Finish
Item #: 53238143
Brand: Kennametal
Model #: 4176118
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NRD |
| Insert Size | 4094 |
| Material | Carbide |
| Cutting Width (mm) | 4.78 |
| Cutting Width (Decimal Inch) | 0.1882 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 11.51 |
| Cutting Height (Decimal Inch) | 0.4530 |
| Lead Angle | 0 |
| Insert Seat Size | 4 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0941 |
| Coating Process | PVD |
| Series | Top Notch |
