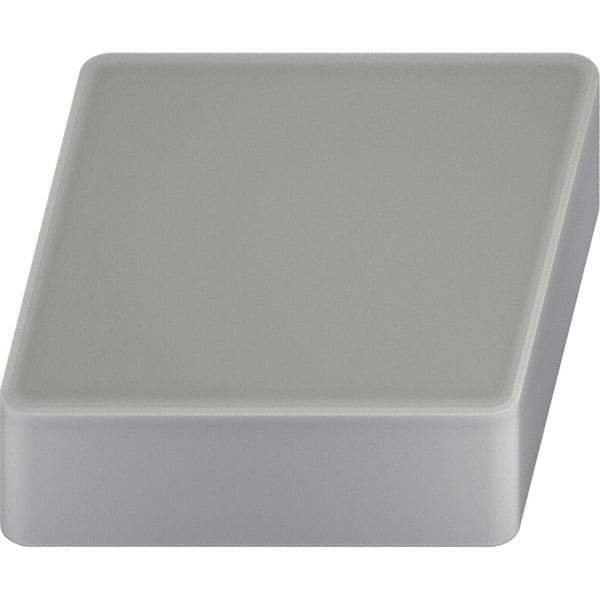

Walter - CNGN452 Grade WIS10 Ceramic Turning Insert - Uncoated, 80° Diamond, 1/2" Inscr Circle, 5/16" Thick, 1/32" Corner Radius
Item #: 53070926
Brand: Walter
Model #: 6188128
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | CNGN |
| Insert Size | 452 |
| Material | Ceramic |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5079 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | WIS10 |
| Coating | Uncoated |
| Material Grade | S10 |
| ISO Number | CNGN120708T01020 |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | CNGN120708T01020 |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Maximum Depth of Cut (mm) | 3.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1417 |
| Insert Holding Method | Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
