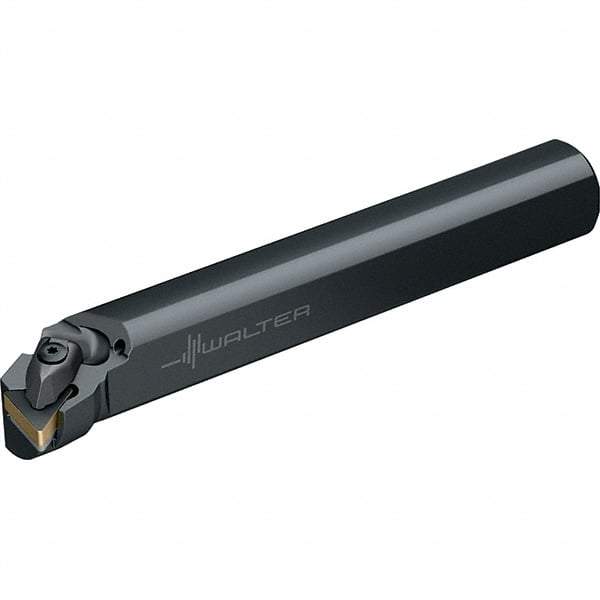

Walter - 1.76" Min Bore Diam, 12" OAL, 1-1/2" Shank Diam, A-DTFN Indexable Boring Bar - TN.. 2204.., TN.. 43.. Insert, Clamp Holding Method
Item #: 53041919
Brand: Walter
Model #: 5335145
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DTFN |
| Series | Walter Turn |
| Minimum Bore Diameter (Decimal Inch) | 1.7600 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | TN.. 2204..; TN.. 43.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | TNMA 432; TNMA 433; TNMA 433T02020; TNMA 434; TNMA 434T02020; TNMA220408; TNMA220412; TNMA220412T02020; TNMA220416; TNMA220416T02020; TNMG 220404-C5; TNMG 220408-C5; TNMG 220408-M2; TNMG 220408-MP3; TNMG 220408-MP5; TNMG 220408-NM5; TNMG 220408-NR4; TNMG |
| Toolholder Material | Steel |
