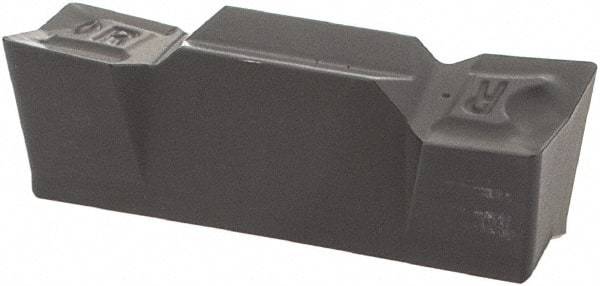

Iscar - 6004HFPR Grade IC428, 6mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, Right Hand, 0.4mm Corner Radius, Al2O3 Finish
Item #: 52722550
Brand: Iscar
Model #: 6200084
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HFPR |
| Insert Size | 6004 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | IC428 |
| Coating | Al2O3 |
| Insert Hand | Right Hand |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.7480 |
