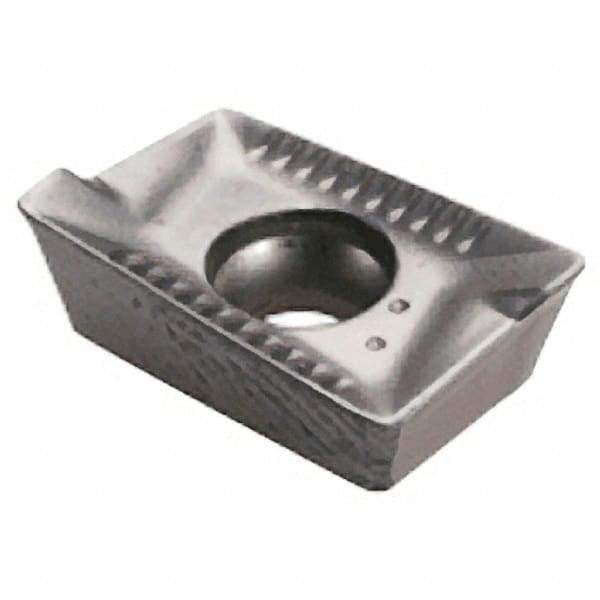

Iscar - APKT1003 76 Grade IC250 Carbide Milling Insert - TiCN/TiN Finish, 0.1366" Thick, 0.5mm Corner Radius
Item #: 52693058
Brand: Iscar
Model #: 5601209
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APKT |
| Insert Size | 1003 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC250 |
| Coating | TiCN/TiN |
| Width (Decimal Inch) | 0.2638 |
| Length (Decimal Inch) | 0.3858 |
| Thickness (Decimal Inch) | 0.1366 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | 76 |
| ISO Number | APKT 1003PDTR-76 |
