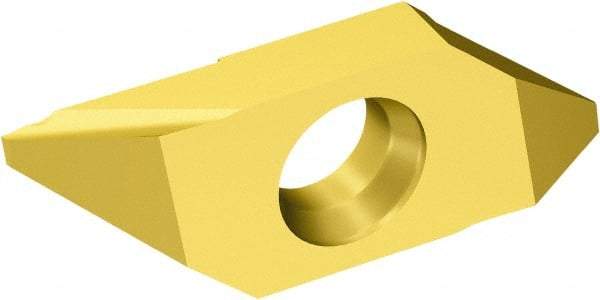

Sandvik Coromant - MAB3R Grade 1025 Carbide Turning Insert - TiAlN/TiN Finish, 0mm Inscr Circle, 1/8" Thick, 0.03mm Corner Radius
Item #: 52085214
Brand: Sandvik Coromant
Model #: 5735283
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MAB |
| Insert Size | 3R |
| Material | Carbide |
| Length (Decimal Inch) | 0.0000 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.03 |
| Corner Radius (Decimal Inch) | 0.0012 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Insert Length (Decimal Inch) | 0.0000 |
| Overall Length (Decimal Inch) | 0.0000 |
| ISO Number | MABR 3 003 1025 |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
