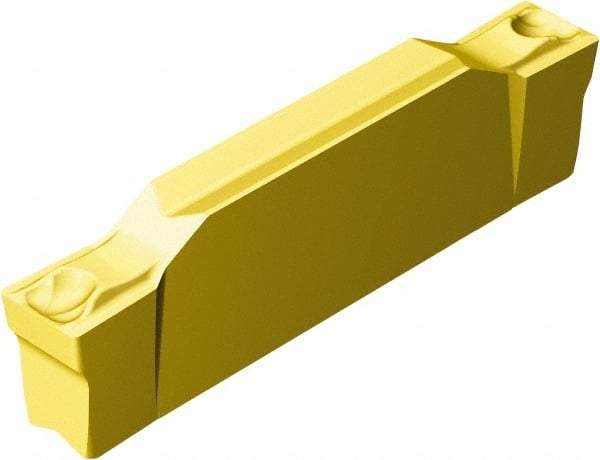

Sandvik Coromant - GN123 GF Grade 1005, 1/8" Cutting Width Carbide Grooving Insert - 19.2mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiAlN/TiN Finish
Item #: 52085032
Brand: Sandvik Coromant
Model #: 5735910
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | G |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Inch) | 1/8 |
| Cutting Width (Decimal Inch) | 0.1252 |
| Maximum Depth of Cut (mm) | 19.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.7559 |
| Manufacturer's Grade | 1005 |
| Coating | TiAlN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Relief Angle | 7 |
| Insert Seat Size | G |
| Chipbreaker | GF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0295 |
| Maximum Corner Radius (Decimal Inch) | 0.0335 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Overall Length (mm) | 20.05 |
| Overall Length (Decimal Inch) | 0.7894 |
| Series | CoroCut 1-2 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N123G2-0318-0008-GF 1005 |
| Manufacturers Catalog Number | N123G2-0318-0008-GF 1005 |
| Overall Width (mm) | 3.18 |
| Overall Width (Decimal Inch) | 0.1252 |
| Insert Thickness (Decimal Inch) | 0.1693 |
