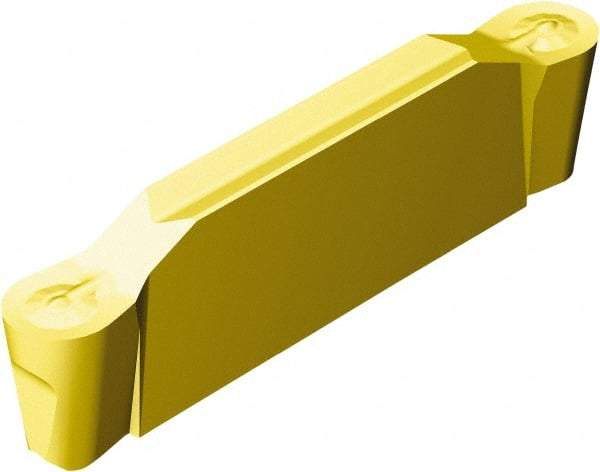

Sandvik Coromant - L2N123x2 RO 8mm Cutting Width Carbide Grooving Insert - 27.3mm Max Depth of Cut, Neutral, 4mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 52081221
Brand: Sandvik Coromant
Model #: 5737507
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123x2 |
| Insert Size | L2 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 27.30 |
| Maximum Depth of Cut (Decimal Inch) | 1.0750 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.05 |
| Cutting Height (Decimal Inch) | 0.2382 |
| Insert Seat Size | L |
| Chipbreaker | RO |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Coating Process | MT-CVD |
| Overall Length (Decimal Inch) | 1.2010 |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | N123L2-0800-RO 2135 |
| Manufacturers Catalog Number | N123L2-0800-RO 2135 |
| Overall Width (Decimal Inch) | 0.3150 |
| Insert Thickness (Decimal Inch) | 0.2382 |
