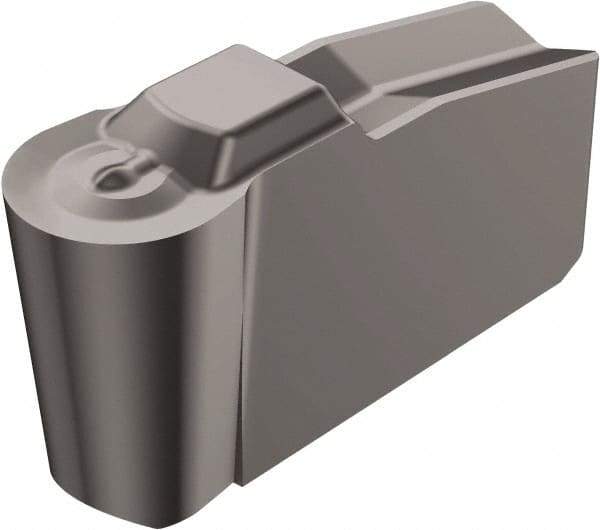

Sandvik Coromant - 40N151.2-A.. 4P 4.75mm Cutting Width Carbide Grooving Insert - 2.11mm Max Depth of Cut, Neutral, 2.37mm Corner Radius, Uncoated
Item #: 52080991
Brand: Sandvik Coromant
Model #: 5736873
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2-A.. |
| Insert Size | 40 |
| Material | Carbide |
| Cutting Width (mm) | 4.75 |
| Cutting Width (Decimal Inch) | 0.1870 |
| Maximum Depth of Cut (mm) | 2.11 |
| Maximum Depth of Cut (Decimal Inch) | 0.0830 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.11 |
| Cutting Height (Decimal Inch) | 0.3191 |
| Insert Seat Size | 40 |
| Chipbreaker | 4P |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0935 |
| Corner Radius (mm) | 2.37 |
| Corner Radius (Decimal Inch) | 0.0935 |
| Coating Process | Uncoated |
| Series | T-Max Q-Cut |
| Rake | Positive |
| ISO Number | N151.2-A187-40-4P H13A |
| Manufacturers Catalog Number | N151.2-A187-40-4P H13A |
| Overall Width (Decimal Inch) | 0.1870 |
| Insert Thickness (Decimal Inch) | 0.3191 |
