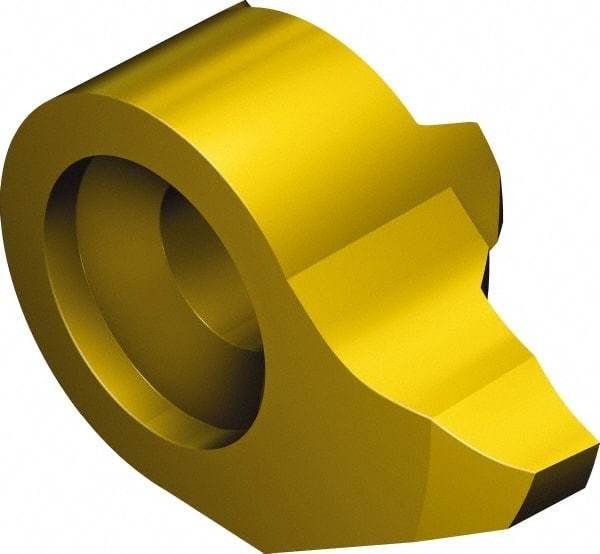

Sandvik Coromant - 07MB Grade 1025, 1mm Cutting Width Carbide Grooving Insert - 0.7mm Max Depth of Cut, Right Hand, TiAlN/TiN Finish
Item #: 52079621
Brand: Sandvik Coromant
Model #: 5735552
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB |
| Insert Size | 07 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 0.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.0276 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 0.00 |
| Cutting Height (Decimal Inch) | 0.0000 |
| Lead Angle | 90 |
| Relief Angle | 2 |
| Insert Seat Size | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting |
| Coating Process | PVD |
| Overall Length (mm) | 4.70 |
| Overall Length (Decimal Inch) | 0.1850 |
| Series | CoroCut MB |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | MB-07GX100-00-10R 1025 |
| Manufacturers Catalog Number | MB-07GX100-00-10R 1025 |
| Overall Width (mm) | 1.00 |
| Overall Width (Decimal Inch) | 0.0394 |
| Insert Thickness (Decimal Inch) | 0.2283 |
