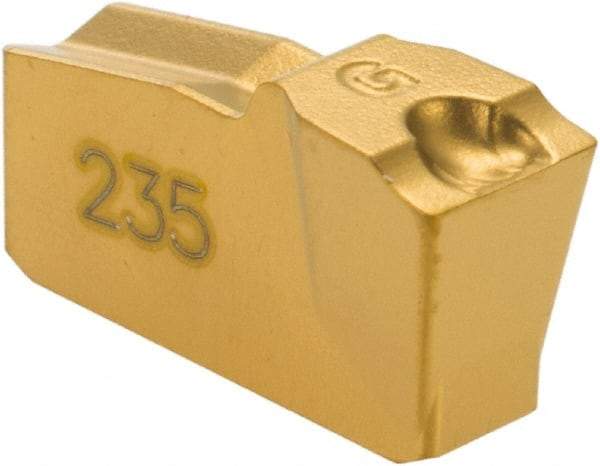

Sandvik Coromant - 40N151.2 5G Grade 235, 3/16" Cutting Width Carbide Grooving Insert - Neutral, 0.25mm Corner Radius, TiCN/TiN Finish
Item #: 52079209
Brand: Sandvik Coromant
Model #: 5736859
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 40 |
| Material | Carbide |
| Cutting Width (mm) | 4.75 |
| Cutting Width (Inch) | 3/16 |
| Cutting Width (Decimal Inch) | 0.1870 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.11 |
| Cutting Height (Decimal Inch) | 0.3191 |
| Relief Angle | 7 |
| Insert Seat Size | 40 |
| Chipbreaker | 5G |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0060 |
| Maximum Corner Radius (Decimal Inch) | 0.0140 |
| Corner Radius (mm) | 0.25 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Coating Process | CVD |
| Overall Length (mm) | 6.80 |
| Overall Length (Decimal Inch) | 0.2677 |
| Series | T-Max Q-Cut |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N151.2-A187-40-5G 235 |
| Manufacturers Catalog Number | N151.2-A187-40-5G 235 |
| Overall Width (mm) | 4.75 |
| Overall Width (Decimal Inch) | 0.1870 |
| Insert Thickness (Decimal Inch) | 0.3191 |
