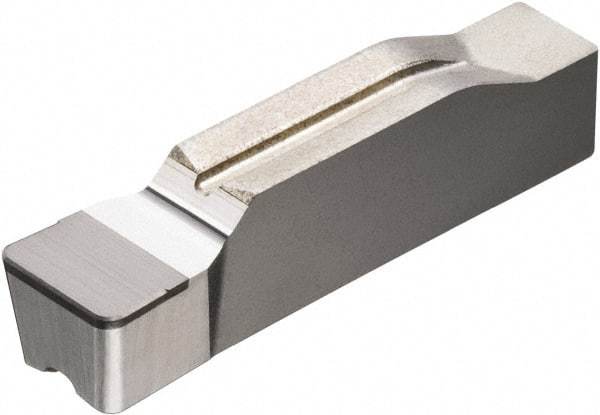

Sandvik Coromant - GN123 S Grade 7015, 3mm Cutting Width CBN Grooving Insert - Neutral, 0.4mm Corner Radius, Uncoated
Item #: 52078367
Brand: Sandvik Coromant
Model #: 5736016
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | G |
| Material | CBN |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 7015 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Relief Angle | 7 |
| Insert Seat Size | G |
| Chipbreaker | S |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0138 |
| Maximum Corner Radius (Decimal Inch) | 0.0177 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (mm) | 20.05 |
| Overall Length (Decimal Inch) | 0.7894 |
| Series | CoroCut 1-2 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N123G1-030004S01025 7015 |
| Manufacturers Catalog Number | N123G1-030004S01025 7015 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
| Insert Thickness (Decimal Inch) | 0.1693 |
