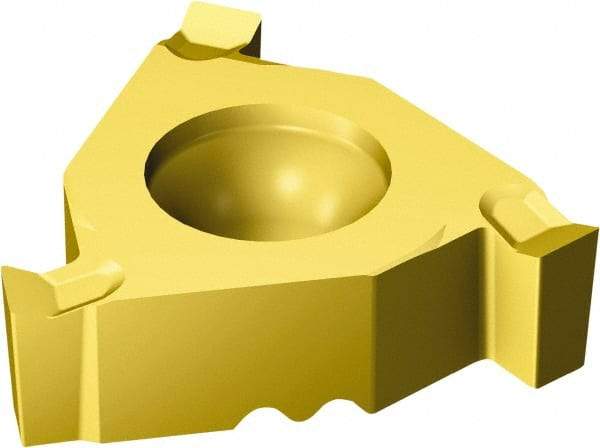

Sandvik Coromant - 0.375254 Grade 1135, 1.1mm Cutting Width Carbide Grooving Insert - 1.3mm Max Depth of Cut, Right Hand, 0.08mm Corner Radius, TiCrAlN/TiN Finish
Item #: 52068475
Brand: Sandvik Coromant
Model #: 5961302
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 254 |
| Insert Size | 0.375 |
| Material | Carbide |
| Cutting Width (mm) | 1.10 |
| Cutting Width (Decimal Inch) | 0.0433 |
| Maximum Depth of Cut (mm) | 1.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0512 |
| Manufacturer's Grade | 1135 |
| Coating | TiCrAlN/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 4.00 |
| Cutting Height (Decimal Inch) | 0.1570 |
| Insert Seat Size | 0.375 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0000 |
| Maximum Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.08 |
| Corner Radius (Decimal Inch) | 0.0032 |
| Coating Process | PVD |
| Overall Length (mm) | 6.90 |
| Overall Length (Decimal Inch) | 0.2717 |
| Series | CoroThread 266 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | 254RG-16CC01-110 1135 |
| Manufacturers Catalog Number | 254RG-16CC01-110 1135 |
| Overall Width (mm) | 1.10 |
| Overall Width (Decimal Inch) | 0.0433 |
| Insert Thickness (Decimal Inch) | 0.1563 |
