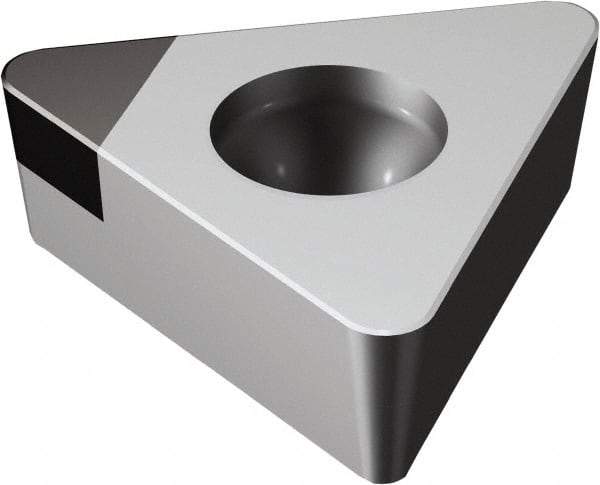

Sandvik Coromant - TCMW1.81.51 FP Grade CD10 Carbide Turning Insert - Uncoated, 60° Triangle, 5.715mm Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 52067634
Brand: Sandvik Coromant
Model #: 5752865
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMW |
| Insert Size | 1.81.51 |
| Material | Carbide |
| Length (mm) | 2.70 |
| Length (Decimal Inch) | 0.1063 |
| Inscribed Circle (mm) | 5.72 |
| Inscribed Circle (Decimal Inch) | 0.2250 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | CD10 |
| Coating | Uncoated |
| Chip Breaker | FP |
| Insert Length (Decimal Inch) | 0.1063 |
| OverallLength (mm) | 9.37 |
| Overall Length (Decimal Inch) | 0.3689 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| ISO Number | TCMW090204FP CD10 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
