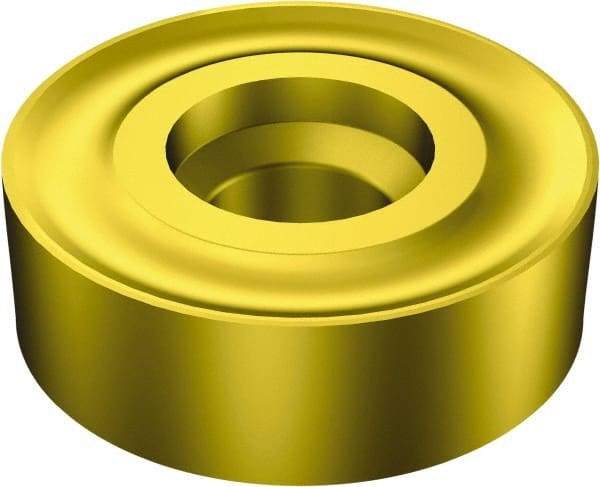

Sandvik Coromant - RNMX5018 MR Grade 2135 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, Round, 2" Inscr Circle, 18mm Thick
Item #: 52066651
Brand: Sandvik Coromant
Model #: 5741286
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNMX |
| Insert Size | 5018 |
| Material | Carbide |
| Length (mm) | 18.00 |
| Length (Decimal Inch) | 0.7087 |
| Inscribed Circle (mm) | 50.80 |
| Inscribed Circle (Decimal Inch) | 2.0000 |
| Inscribed Circle (Inch) | 2 |
| Thickness (Decimal Inch) | 0.7087 |
| Thickness (mm) | 18.00 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | MR |
| Insert Length (Decimal Inch) | 0.7087 |
| OverallLength (mm) | 18.00 |
| Overall Length (Decimal Inch) | 0.7087 |
| Hole Diameter (mm) | 12.80 |
| Hole Diameter (Decimal Inch) | 0.5039 |
| ISO Number | RNMX 50 18 M0-MR 2135 |
| Relief Angle | 0 |
| Shape | Round |
