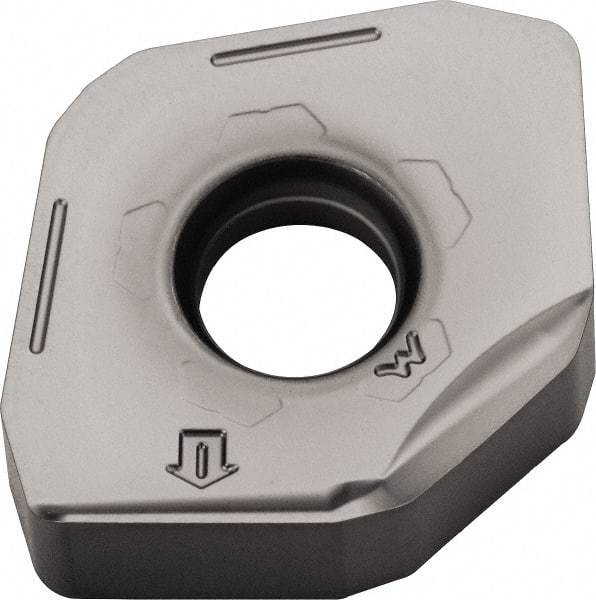

Kyocera - PNEU1205 W Grade PR1510 Carbide Milling Insert - Megacoat Nano Finish, 5.56mm Thick
Item #: 50472836
Brand: Kyocera
Model #: 8837831
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PNEU |
| Insert Size | 1205 |
| Material | Carbide |
| Manufacturer's Grade | PR1510 |
| Coating | Megacoat Nano |
| Width (mm) | 17.85 |
| Width (Decimal Inch) | 0.7028 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Hole Diameter (mm) | 6.20 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Pentagon |
| Insert Hand | Right Hand |
| Chipbreaker | W |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | PNEU1205ANER-W |
