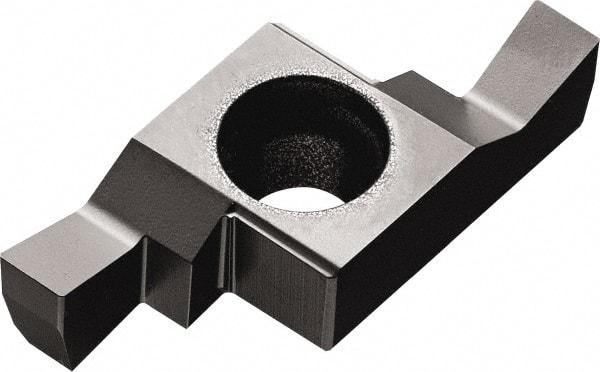

Kyocera - 140GE D Grade PR1225, 1.4mm Cutting Width Carbide Grooving Insert - 2.5mm Max Depth of Cut, Left Hand, 0.05mm Corner Radius, Megacoat Finish
Item #: 50469451
Brand: Kyocera
Model #: 8836764
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GE |
| Insert Size | 140 |
| Material | Carbide |
| Cutting Width (mm) | 1.40 |
| Cutting Width (Decimal Inch) | 0.0551 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 5.05 |
| Cutting Height (Decimal Inch) | 0.1988 |
| Relief Angle | 2 |
| Chipbreaker | D |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.001969 |
| Coating Process | PVD |
| Overall Length (mm) | 16.44 |
| Overall Length (Decimal Inch) | 0.6472 |
| Series | Sige |
| Manufacturers Catalog Number | GEL140-005D |
| Overall Width (mm) | 6.80 |
| Overall Width (Decimal Inch) | 0.2677 |
