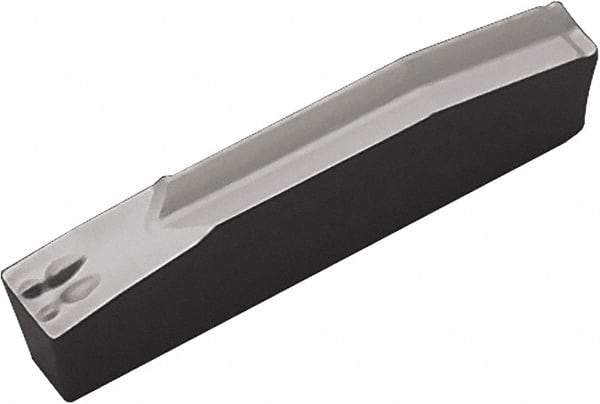

Kyocera - 6GMN Grade KPD010, 6mm Cutting Width Polycrystalline Diamond (PCD) Grooving Insert - Neutral, 0.8mm Corner Radius
Item #: 50459932
Brand: Kyocera
Model #: 8811328
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | GMN |
| Insert Size | 6 |
| Material | Polycrystalline Diamond (PCD) |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Manufacturer's Grade | KPD010 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.031496 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GMN |
| Manufacturers Catalog Number | GMN6 |
| Insert Thickness (Decimal Inch) | 0.2047 |
| Insert Thickness (mm) | 5.2000 |
