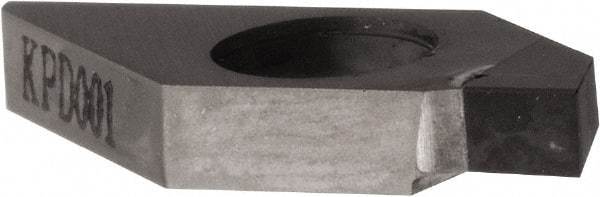

Kyocera - TKF KPD001 Grade, 0.0984" Cutting Width, Polycrystalline Diamond (PCD) Cutoff Insert - 0° Lead Angle," Cnr Rad
Item #: 50459734
Brand: Kyocera
Model #: 8829655
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Material | Polycrystalline Diamond (PCD) |
| Insert Style | TKF |
| Insert Size | 12 |
| Lead Angle | 0 |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | KPD001 |
| Series | TKF |
| Full Radius | No |
| Multi-Use Application | Cut-Off; Grooving |
| Cutting Height (mm) | 8.70 |
| Cutting Height (Decimal Inch) | 0.3425 |
| Corner Radius (Decimal Inch) | 0.000000 |
| Corner Radius (mm) | 0 |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
| Width Tolerance | 0.03 (mm) |
| Manufacturers Catalog Number | TKF12R250-NB |
