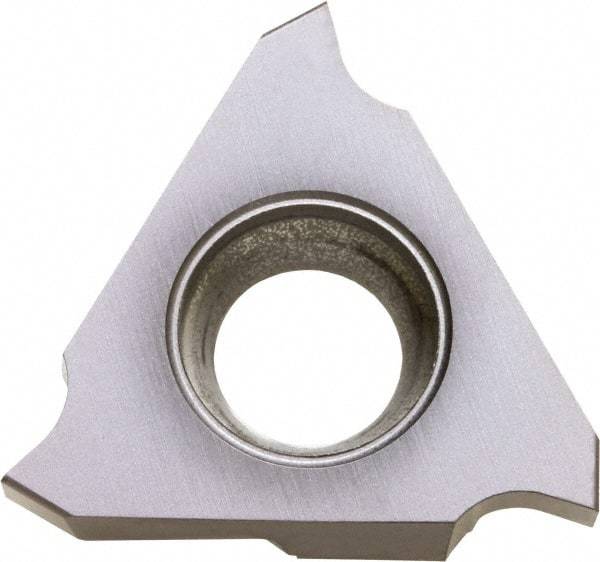

Kyocera - 43GBA Grade KPD001, 3mm Cutting Width Polycrystalline Diamond (PCD) Grooving Insert - 4mm Max Depth of Cut, Left Hand, 0.3mm Corner Radius
Item #: 50446350
Brand: Kyocera
Model #: 8810760
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Polycrystalline Diamond (PCD) |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | KPD001 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.3000 |
| Corner Radius (Decimal Inch) | 0.011811 |
| Series | GBA |
| Manufacturers Catalog Number | GBA43L300-030 |
| Insert Thickness (Decimal Inch) | 0.1870 |
