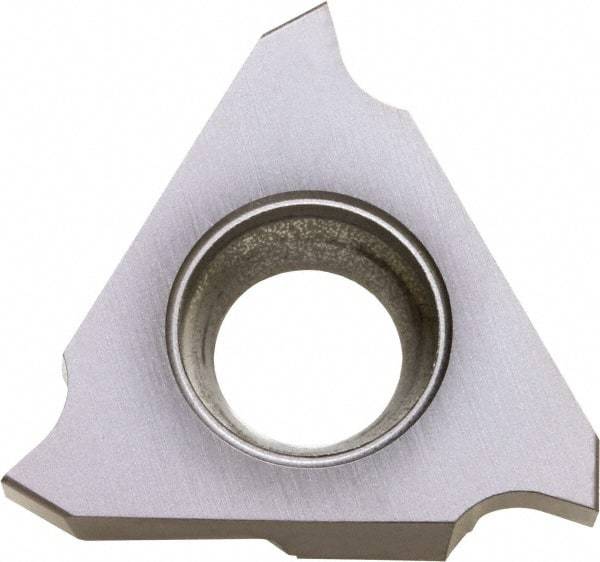

Kyocera - 32GBA Grade PR930, 2mm Cutting Width Carbide Grooving Insert - 2.5mm Max Depth of Cut, Right Hand, 0.2mm Corner Radius, TiCN Finish
Item #: 50436971
Brand: Kyocera
Model #: 8805076
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 32 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.2000 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Coating Process | PVD |
| Series | GBA |
| Manufacturers Catalog Number | GBA32R200-020 |
| Insert Thickness (Decimal Inch) | 0.1250 |
