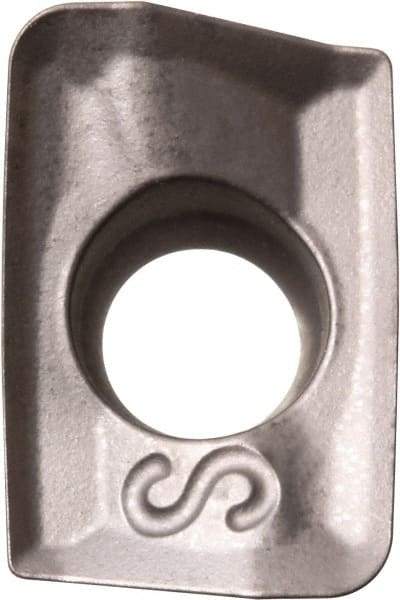

Kyocera - BDMT110308 JS Grade PR1535 Carbide Milling Insert - Megacoat Nano Finish, 3mm Thick, 0.8mm Corner Radius
Item #: 50430941
Brand: Kyocera
Model #: 8842361
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BDMT |
| Insert Size | 110308 |
| Material | Carbide |
| Manufacturer's Grade | PR1535 |
| Coating | Megacoat Nano |
| Width (mm) | 6.30 |
| Width (Decimal Inch) | 0.2480 |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4331 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1181 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 82 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | JS |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | BDMT110308ERJS |
