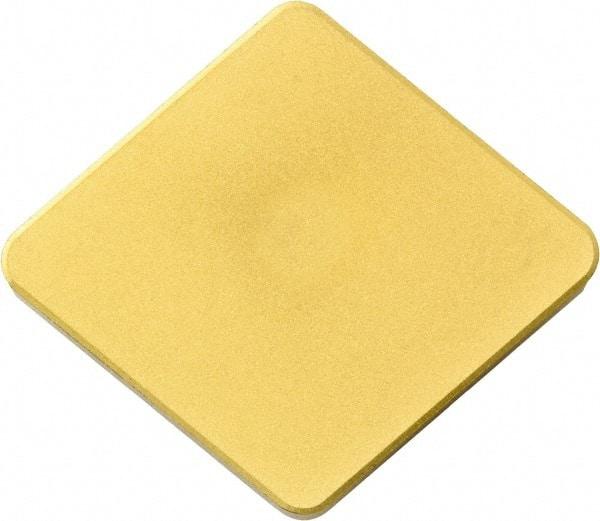

Kyocera - CNM323 Grade KBN900 CBN Turning Insert - TiN Finish, 80° Diamond, 3/8" Inscr Circle, 1/8" Thick, 3/64" Corner Radius
Item #: 50361013
Brand: Kyocera
Model #: 8817114
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CNM |
| Insert Size | 323 |
| Material | CBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KBN900 |
| Coating | TiN |
| Relief Angle | 0 |
| Manufacturers Catalog Number | CNM323 KBN900 |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
