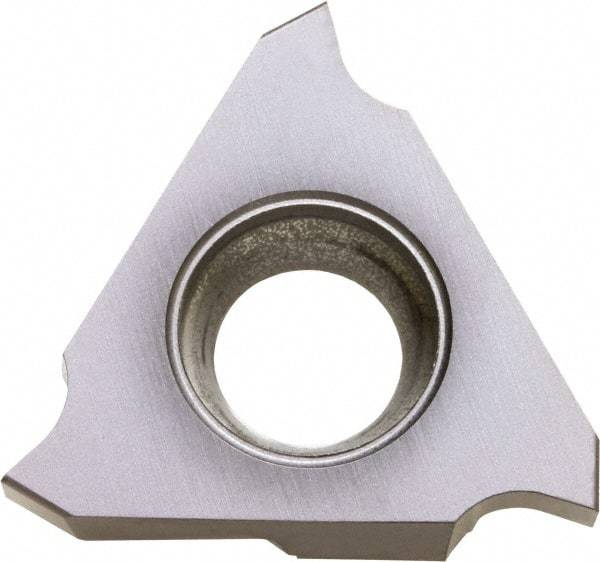

Kyocera - 43GBA Grade KW10, 3.3mm Cutting Width Carbide Grooving Insert - 4mm Max Depth of Cut, Right Hand, 0.3mm Corner Radius, WC/Co Finish
Item #: 50358860
Brand: Kyocera
Model #: 8810859
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Carbide |
| Cutting Width (mm) | 3.30 |
| Cutting Width (Decimal Inch) | 0.1299 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.3000 |
| Corner Radius (Decimal Inch) | 0.011811 |
| Series | GBA |
| Manufacturers Catalog Number | GBA43R330-030 |
| Insert Thickness (Decimal Inch) | 0.1870 |
