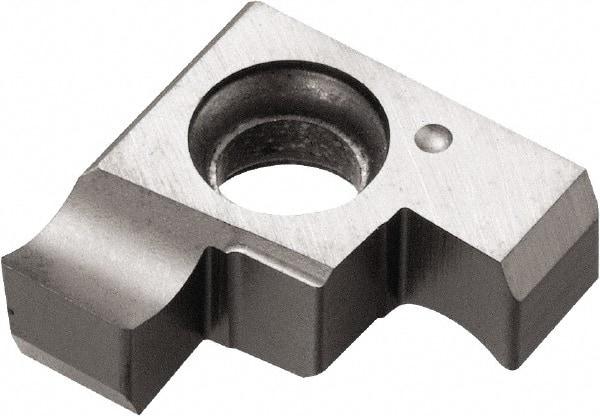

Kyocera - 200GE B Grade KW10, 2mm Cutting Width Carbide Grooving Insert - 2.2mm Max Depth of Cut, Left Hand, 0.1mm Corner Radius, WC/Co Finish
Item #: 50358068
Brand: Kyocera
Model #: 8822841
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GE |
| Insert Size | 200 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 3.18 |
| Cutting Height (Decimal Inch) | 0.1252 |
| Relief Angle | 2 |
| Chipbreaker | B |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.003937 |
| Overall Length (mm) | 8.20 |
| Overall Length (Decimal Inch) | 0.3228 |
| Series | Sige |
| Rake Angle | 14 |
| Rake | Negative |
| Manufacturers Catalog Number | GEL200-010B |
| Overall Width (mm) | 8.46 |
| Overall Width (Decimal Inch) | 0.3331 |
