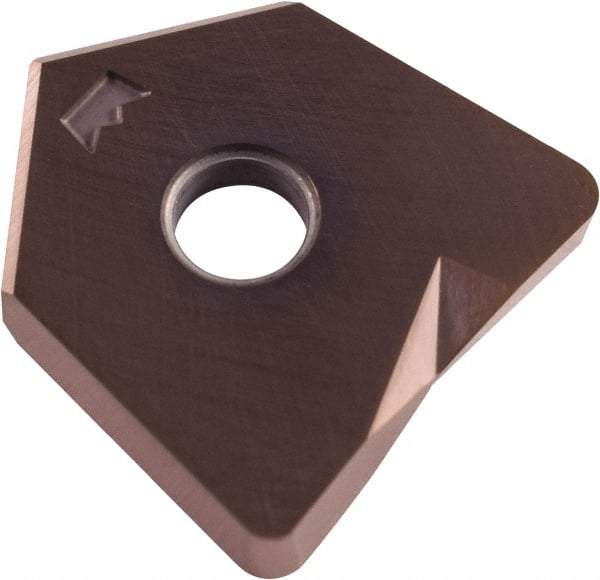

Millstar - BD-R0500 Grade CM10 Carbide Milling Insert - HSN Finish, 0.1" Thick, 1/2" Inscribed Circle, 1/16" Corner Radius
Item #: 50333780
Brand: Millstar
Model #: BD0500R04HSN
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BD-R |
| Insert Size | 0500 |
| Material | Carbide |
| Material Grade | C1/C2/C3/C5/C6/C7 |
| Manufacturer's Grade | CM10 |
| Coating | HSN |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Length (Decimal Inch) | 0.3800 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1000 |
| Corner Radius (Inch) | 0 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Rake | Neutral |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Cutting Edge Style | Honed |
