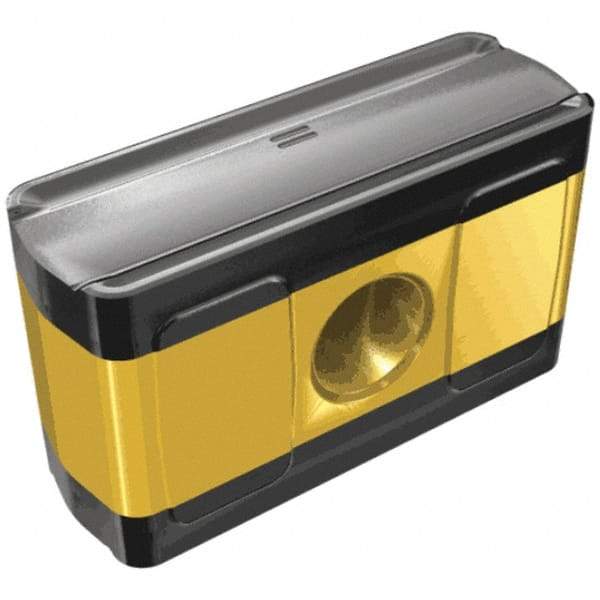

Iscar - LOMX402224 H6P Grade IC8150 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Rectangle, 22.6mm Thick, 3/32" Corner Radius
Item #: 50098383
Brand: Iscar
Model #: 5568210
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LOMX |
| Insert Size | 402224 |
| Material | Carbide |
| Length (mm) | 40.30 |
| Length (Decimal Inch) | 1.5866 |
| Thickness (Decimal Inch) | 0.8898 |
| Thickness (mm) | 22.60 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | H6P |
| Coating Process | CVD |
| Manufacturers Catalog Number | LOMX 402224-H6P |
| Included Angle | 90 |
| Series | HeavySuperTurn |
| Maximum Depth of Cut (mm) | 35.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3780 |
| Insert Holding Method | Pin |
| MultiUseTool | No |
| Shape | Rectangle |
