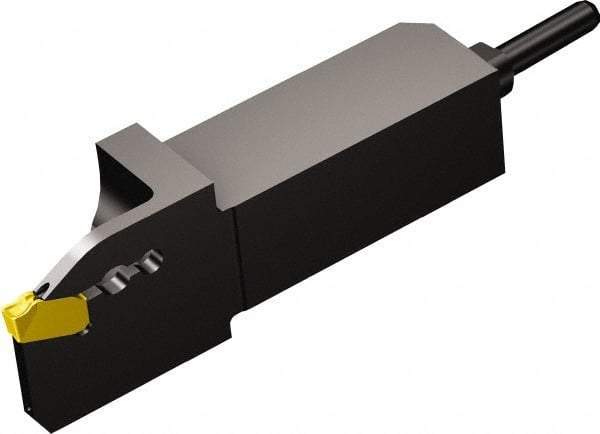

Sandvik Coromant - QS-QD-R/LF..C..S, External, Right Hand, 16mm Max Depth of Cut, Indexable Grooving Tool Holder - QD-NE-0200-0002-CM Insert Compatibility, 12mm Shank Height, 12mm Shank Width, 70mm OAL, Through Coolant
Item #: 49547003
Brand: Sandvik Coromant
Model #: 6427803
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 16.00 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Toolholder Style | QS-QD-R/LF..C..S |
| Insert Compatibility | QD-NE-0200-0002-CM |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Series | CoroCut QD |
| Through Coolant | Through Coolant |
| Insert Seat Size | E |
| Maximum Hole Depth (Decimal Inch) | 0.9843 |
| Maximum Bore Depth (Decimal Inch) | 0.9843 |
| igrvh Maximum Bore Depth (mm) | 25.00 |
| Maximum Workpiece Diameter (mm) | 32.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2598 |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Center to Cutting Edge (mm) | 12.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4724 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NE-0200-0002-CM |
