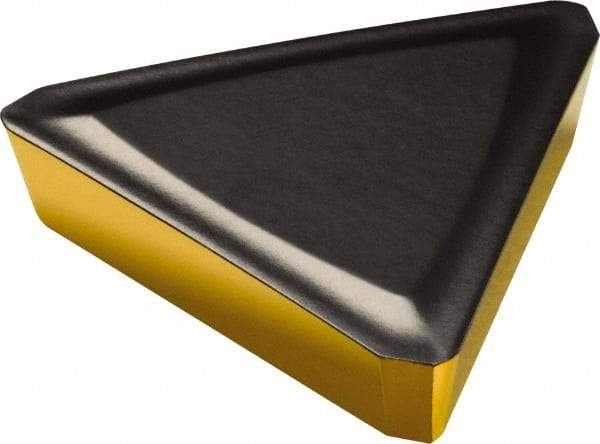

Sandvik Coromant - TPKR32 WH Grade 4240 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 3.17mm Thick, 9.53mm Inscribed Circle
Item #: 49543663
Brand: Sandvik Coromant
Model #: 5755046
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPKR |
| Insert Size | 32 |
| Material | Carbide |
| Manufacturer's Grade | 4240 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (mm) | 3.17 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Right Hand |
| Chipbreaker | WH |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Cutting Edge Style | Rounded |
| ISO Number | TPKR 16 03 PP R-WH 4240 |
