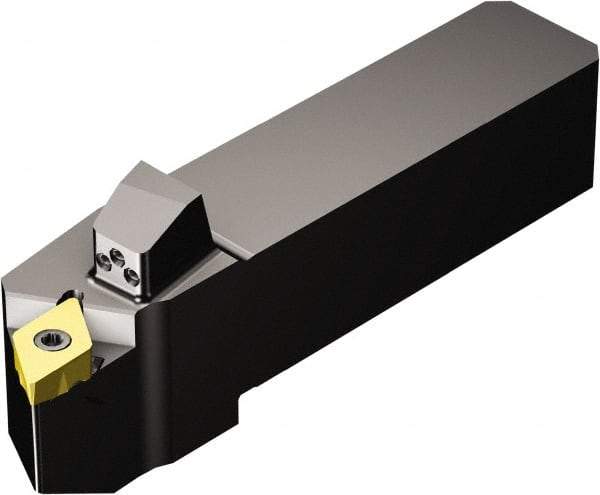

Sandvik Coromant - QS-TR-D..JCR/L..HP, Right Hand Cut, -3° Lead Angle, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 126mm OAL, TR-DC1308 Insert Compatibility, Series CoroTurn TR
Item #: 49505670
Brand: Sandvik Coromant
Model #: 6766756
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | QS-TR-D..JCR/L..HP |
| Rake | Neutral |
| Series | CoroTurn TR |
| Lead Angle | -3 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 126.00 |
| Overall Length (Decimal Inch) | 4.9606 |
| Insert Compatibility | TR-DC1308 |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 126.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9606 |
| Center to Cutting Edge (Decimal Inch) | 1.0039 |
| Head Length (mm) | 67.00 |
| Head Length (Decimal Inch) | 2.6378 |
| Toolholder Material | Steel |
