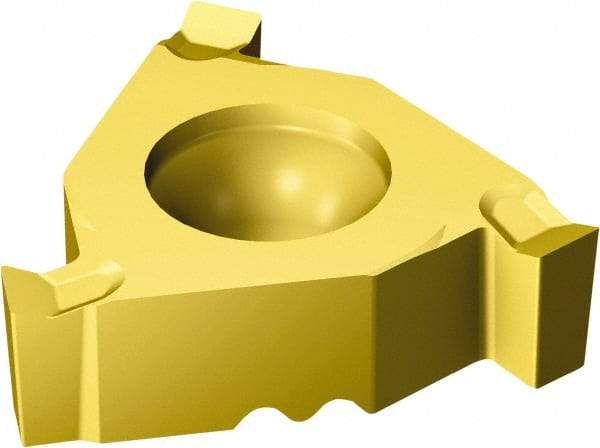

Sandvik Coromant - 2R254RG Grade 1135, 3.15mm Cutting Width Carbide Grooving Insert - 2.2mm Max Depth of Cut, Right Hand, 0.15mm Corner Radius
Item #: 49347826
Brand: Sandvik Coromant
Model #: 5910842
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 254RG |
| Insert Size | 2R |
| Material | Carbide |
| Cutting Width (mm) | 3.15 |
| Cutting Width (Decimal Inch) | 0.1240 |
| Maximum Depth of Cut (mm) | 2.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Manufacturer's Grade | 1135 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 0 |
| Insert Seat Size | 22 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Coating Process | PVD |
| Series | CoroThread 266 |
| ISO Number | 254RG22CC013151135 |
| Manufacturers Catalog Number | 5910842 |
| Included Angle | 60 |
| Insert Thickness (Decimal Inch) | 0.2190 |
| Insert Thickness (mm) | 5.5626 |
