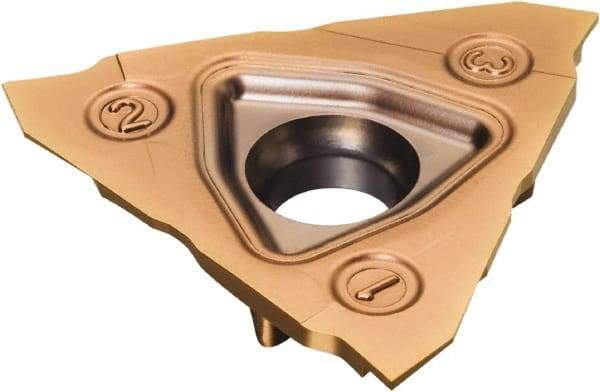

Sandvik Coromant - 300800N123 GS Grade 1125, 0.8mm Cutting Width Carbide Grooving Insert - 1.8mm Max Depth of Cut, Neutral, TiAlN Finish
Item #: 49346869
Brand: Sandvik Coromant
Model #: 5737088
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 300800 |
| Material | Carbide |
| Cutting Width (mm) | 0.80 |
| Cutting Width (Decimal Inch) | 0.0315 |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 0 |
| Chipbreaker | GS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Series | CoroCut 3 |
| ISO Number | N123U300800000GS1125 |
| Manufacturers Catalog Number | 5737088 |
| Insert Thickness (Decimal Inch) | 0.2220 |
| Insert Thickness (mm) | 5.6400 |
