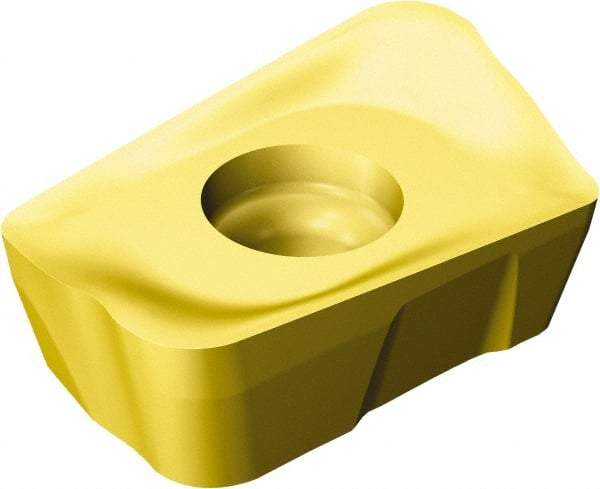

Sandvik Coromant - R390180612 PM Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 6.35mm Thick, 1.2mm Corner Radius
Item #: 49342033
Brand: Sandvik Coromant
Model #: 5853534
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R390 |
| Insert Size | 180612 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 18.00 |
| Width (Decimal Inch) | 0.7087 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 4.15 |
| Hole Diameter (Decimal Inch) | 0.1634 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5853534 |
| ISO Number | R390-18 06 12M-PMR S40T |
