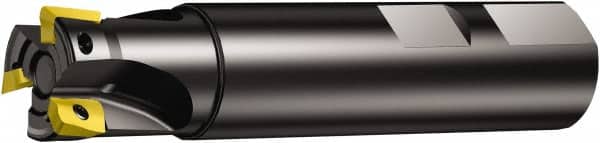

Sandvik Coromant - 1-1/2" Cut Diam, 15.7mm Max Depth, 1-1/4" Shank Diam, Weldon Shank, 4.501" OAL, Indexable Square-Shoulder End Mill
Item #: 49335888
Brand: Sandvik Coromant
Model #: 5740179
Product Specifications
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.5010 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6180 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | RA390-038M32-17L |
| Number of Flutes | 2 |
| Head Length (Inch) | 1-3/4 |
| Head Length (Decimal Inch) | 1.7500 |
| Weldon Flat | Yes |
| Insert Compatibility | R390-17 04 04M-PM; R390-17 04 08E-PL; R390-17 04 08M-PL; R390-17 04 08M-PM |
| Shank Length (Inch) | 2-3/4 |
| Shank Length (Decimal Inch) | 2.7500 |
| Maximum RPM | 22,700 |
| Toolholder Material | Steel |
