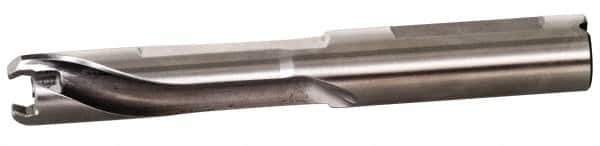

Kennametal - 7.94 to 8.5mm Diam, 3xD, 25.5mm Max Depth, 8mm Shank Diam, 40.8mm Flute, 80mm OAL, Replaceable Tip Drill - KTIP03125HP Insert, F Seat Size, Series KenTIP
Item #: 48581367
Brand: Kennametal
Model #: 2633730
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 7.94 |
| Minimum Drill Diameter (Decimal Inch) | 0.3126 |
| Maximum Drill Diameter (mm) | 8.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.3346 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 25.50 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Style | KTIP03125HP |
| Insert Seat Size | F |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 1.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.0472 |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 1.40 |
| Flute Length (mm) | 40.80 |
| Flute Length (Decimal Inch) | 1.6063 |
| Overall Length (mm) | 80.00 |
