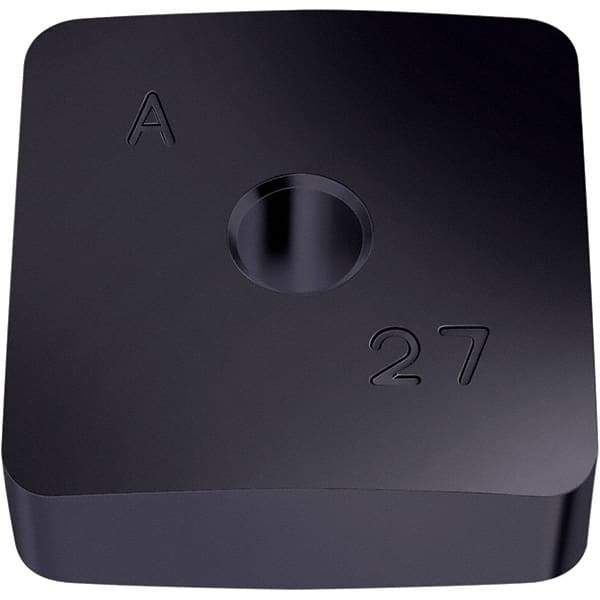

Walter - A27 Grade WAK15 Milling Insert - 4.76mm Thick, 12.7mm Inscribed Circle, 1.2mm Corner Radius
Item #: 48287692
Brand: Walter
Model #: 6514009
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WAK15 |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Neutral |
| Chipbreaker | A27 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Manufacturers Catalog Number | SNEF1204PNN-A27 WAK15 |
