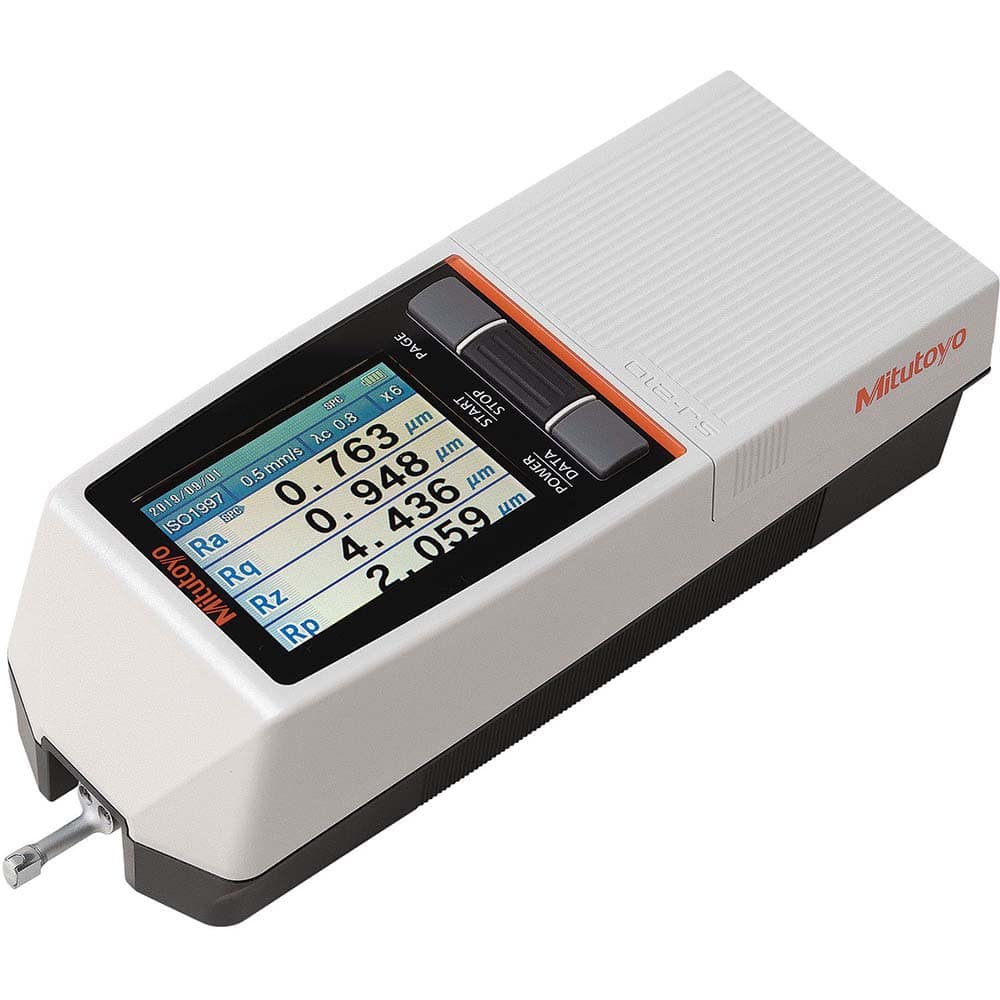

Mitutoyo - SJ-210 Portable Surface Roughness Tester
Item #: 48192793
Brand: Mitutoyo
Model #: 178-563-12A
Product Specifications
| Roughness Parameter Type | Ra; Rc; Ry; Rz; Rq; Rt; Rmax; Rp; Rv; R3z; Rsk; Rku; Rc; RPc; RSm; Rz1max; S; HSC; RzJIS; Rppi; R?a; R?q; Rlr; Rmr; Rmr(c); R; Rk; Rpk; Rvk; Mr1; Mr2; A1; A2; Vo; Rpm; tp; Htp; Rx; AR |
| Stylus Tip Radius (micro m) | 5.00 |
| Stylus Tip Radius (micro Inch) | 200.0000 |
| Ra Measurement Minimum (micro m) | 10.00 |
| Ra Measurement Minimum (micro Inch) | 394.0000 |
| Ra Measurement Maximum (micro m) | 10.00 |
| Ra Measurement Maximum (micro Inch) | 394.0000 |
| Rz Measurement Minimum (micro m) | 0.10 |
| Rz Measurement Minimum (micro Inch) | 3.9400 |
| Rz Measurement Maximum (micro m) | 50.00 |
| Rz Measurement Maximum (micro Inch) | 1968.0000 |
| Roughness Standards | JIS; ISO; ANSI; VDA |
| Data Output Type | RS-232C; USB |
| Display Type | LCD Color |
| Power Supply Type | Battery; Battery Charger |
| Battery Type | Ni-MH or Alkaline (2 x AA size); NiMH - Rechargeable |
| Description | SJ-210 Portable Surface Roughness Tester, Retractable Detector, Skidded, .7 In/17.5mm Evaluation Range, 4mN Measuring Force, 90 degree 5 Micron Stylus Tip, Color Built-In Display Unit, USB/RS-232C Output |
| Series | 178 |
