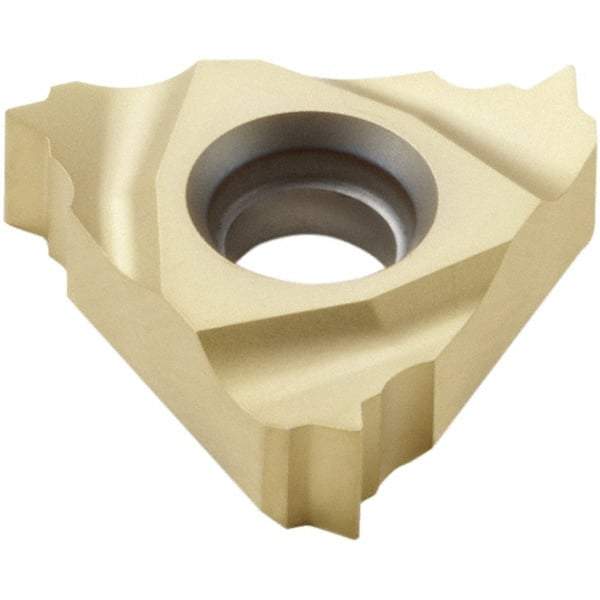

Seco - 16NR Internal Right Hand UN Laydown Threading Insert - Grade CP200, TiAlN Coated Carbide, 3/8" Inscribed Circle
Item #: 48112015
Brand: Seco
Model #: 05035
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16NR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | UN |
| Material Grade | C2/C3 |
| Manufacturer's Grade | CP200 |
| Internal Threads Per Inch | 28 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1969 |
| Included Angle of Threading Tip | 60 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.00 |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.650 |
| Number of Teeth Per Side | 3 |
| Insert Size | 16 |
