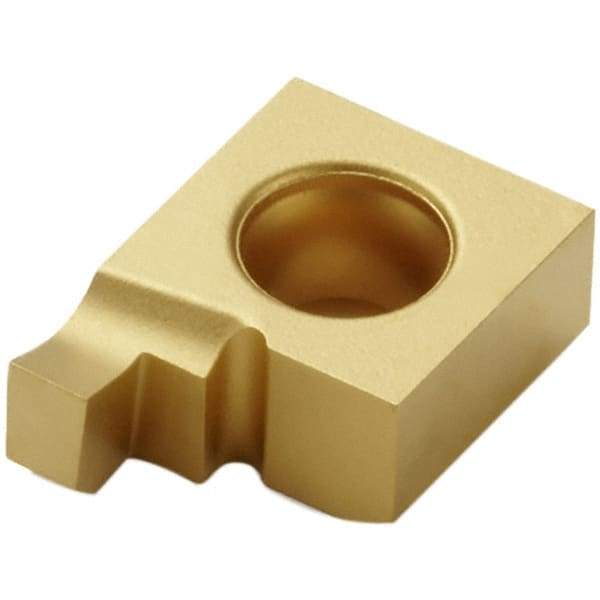

Seco - 2..659NR2 Grade CP30, 2.65mm Cutting Width Carbide Grooving Insert - 2.65mm Max Depth of Cut, Right Hand, TiN/TiCN Finish
Item #: 47957642
Brand: Seco
Model #: 25806
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 9NR2 |
| Insert Size | 2..65 |
| Material | Carbide |
| Cutting Width (mm) | 2.65 |
| Maximum Depth of Cut (mm) | 2.65 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | CP30 |
| Coating | TiN/TiCN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 3.00 |
| Lead Angle | 90 |
| Insert Seat Size | 9NR2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0 |
