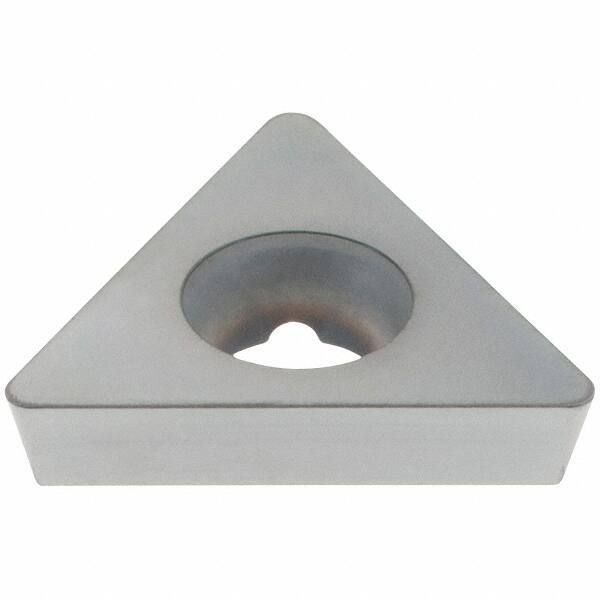

Dorian Tool - TDEX1603 Carbide Milling Insert - AlCrN Finish, 1/8" Thick, 3/8" Inscribed Circle, 0.03" Corner Radius
Item #: 47888201
Brand: Dorian Tool
Model #: 73310195453
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TDEX |
| Insert Size | 1603 |
| Material | Carbide |
| Material Grade | P15-P30 |
| Coating | AlCrN |
| Width (mm) | 16.00 |
| Length (mm) | 16.00 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Hole Diameter (Decimal Inch) | 0.1800 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Neutral |
