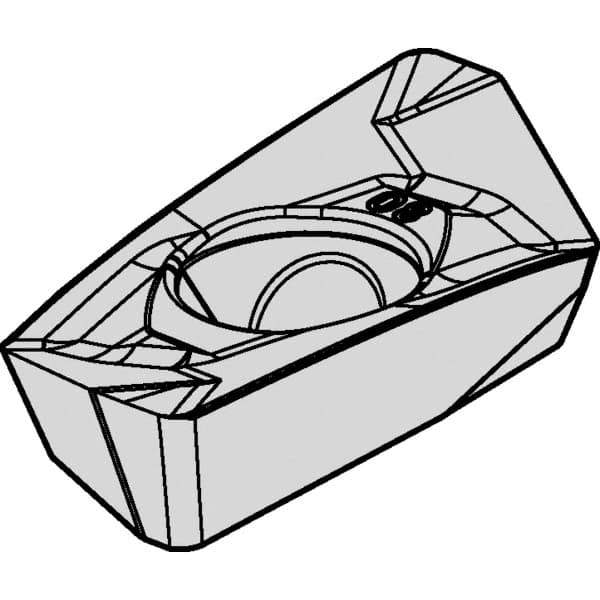

Kennametal - EDPT1816 HD Grade KCPM40 Carbide Milling Insert - AlCrTiN Finish, 5.5mm Thick, 1.59mm Corner Radius
Item #: 47388533
Brand: Kennametal
Model #: 6162808
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EDPT |
| Insert Size | 1816 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | AlCrTiN |
| Width (mm) | 10.87 |
| Length (mm) | 18.00 |
| Thickness (mm) | 5.50 |
| Corner Radius (mm) | 1.59 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Included Angle | 70 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | HD |
| ISO Number | EDPT180516PDERHD |
| ANSI Number | EP1816EHD |
