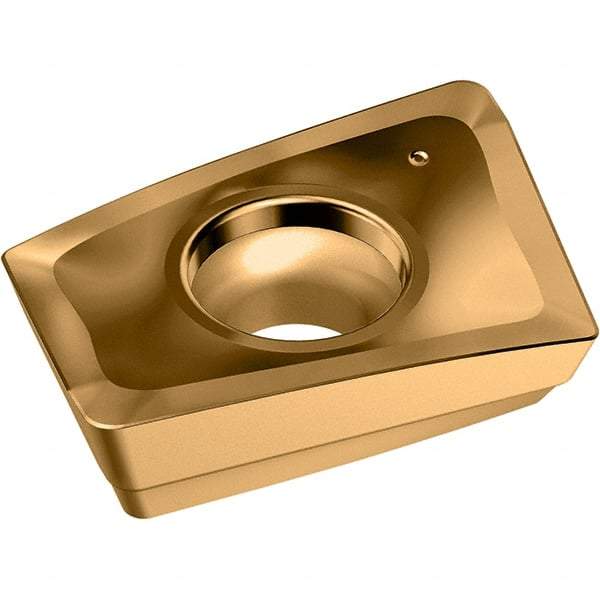

Walter - A57 Grade WKP35G Milling Insert - 2.58mm Thick, 6.1mm Inscribed Circle, 0.4mm Corner Radius
Item #: 47329347
Brand: Walter
Model #: 7170504
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP35G |
| Width (mm) | 6.10 |
| Width (Decimal Inch) | 0.2400 |
| Length (mm) | 8.88 |
| Length (Decimal Inch) | 0.3500 |
| Inscribed Circle (mm) | 6.10 |
| Inscribed Circle (Decimal Inch) | 0.2400 |
| Thickness (mm) | 2.58 |
| Thickness (Decimal Inch) | 0.1020 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | A57 |
| Maximum Depth of Cut (mm) | 8.88 |
| Maximum Depth of Cut (Decimal Inch) | 0.3500 |
| Manufacturers Catalog Number | LDMW08T204R-A57 WKP35G |
