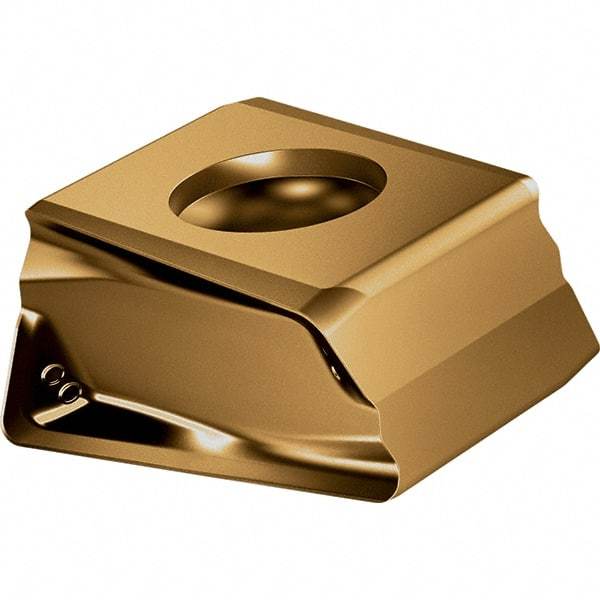

Walter - L55T Grade WKP35G Milling Insert - 7.2mm Thick, 1.2mm Corner Radius
Item #: 47326418
Brand: Walter
Model #: 7170515
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WKP35G |
| Width (mm) | 15.50 |
| Width (Decimal Inch) | 0.6100 |
| Length (mm) | 16.00 |
| Length (Decimal Inch) | 0.6300 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (mm) | 7.20 |
| Thickness (Decimal Inch) | 0.2830 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | L55T |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Manufacturers Catalog Number | LNHU160712R-L55T WKP35G |
